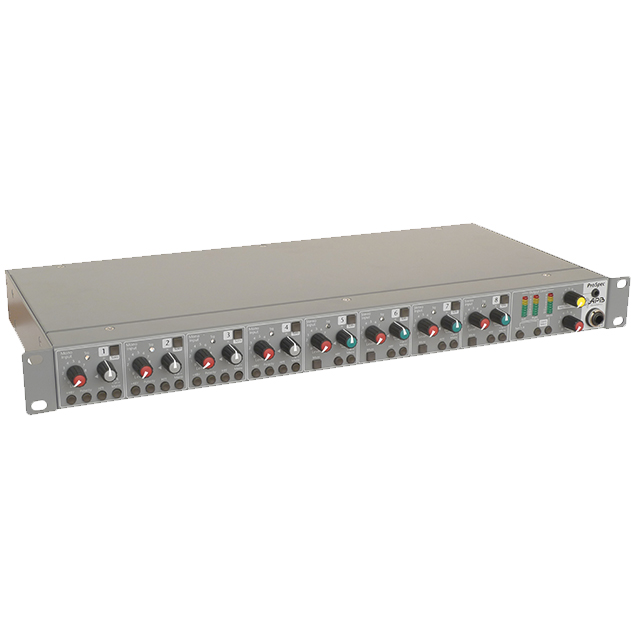

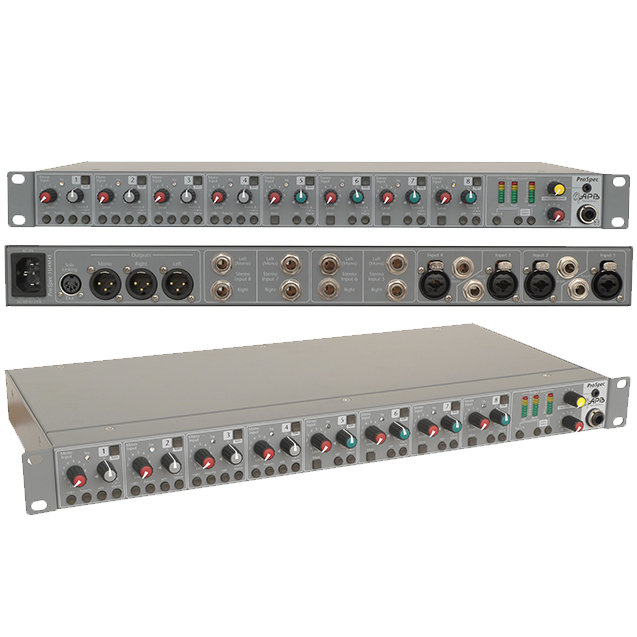

ProSpec™ 1U4M4S

Product Features

• Live Performance mixers designed to operate in Mono, Stereo, or LCR applications.
• Prospec™-1U4M4S: 4 Channels of Professional Quality Burr-Brown Microphone Pre-Amplifiers and 4 balanced stereo line input channels.
• Balanced Left, Right, and Mono (center) XLR outputs use THAT Corporation OutSmarts output devices.
• All front panel switches are internally illuminated.
• Individual Solo switch on each mono and stereo input channel.
• Monitor headphone level control with 1/4” and 1/8” headphone connectors and rear panel APB mixer link connector.
• Each input channel is assignable to Left-Right OR Mono (Center) mix bus

• Level and Pan controls on Mono input channels / Level and Balance controls on Stereo input channels.
• Mono input channels have 48-Volt Phantom Power, High Pass Filter, Polarity Reverse and Assignment switches.
• Stereo input channels have Mute, Polarity Reverse, and Assignment switches.
• Individual Left, Right, and Mono (Center) Metering.
• Front panel Left-Right sum switch
• Mono input channel use Neutrik XLR/1/4” combo connectors and TRS insert points
• Stereo input use individual high quality 1/4” balanced left and right input connectors.
• Low phase-shift, wide bandwidth electronic design derived from APB’s Spectra and ProDesk™ products.
